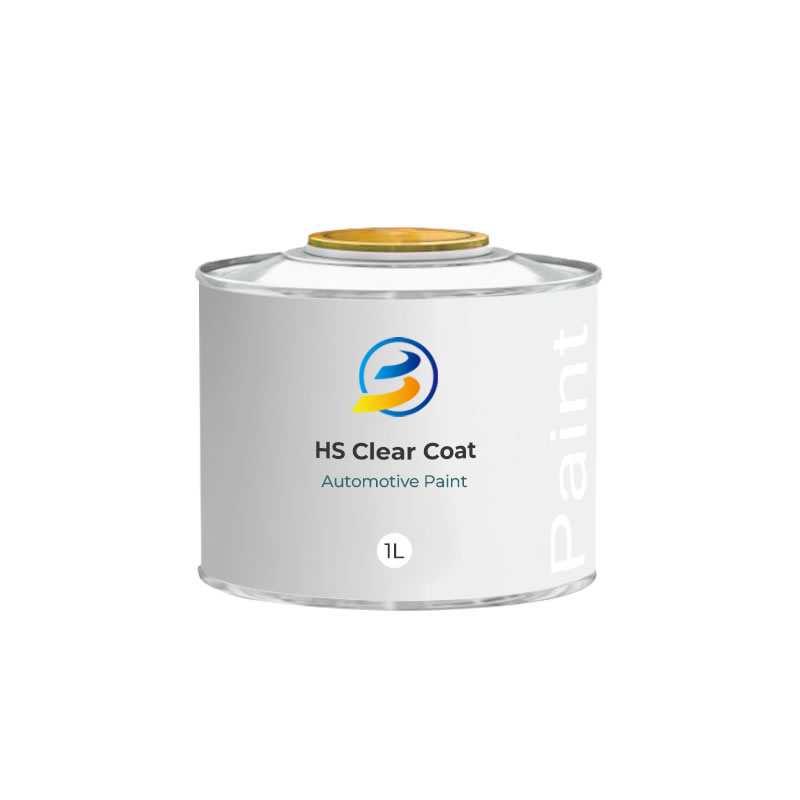

HS Clear Coat
HS clear coat is high solid content and fast dry acrylic clear coat Especially formulated for spray over 1K base coat to give very glossy finishing. Excellent yellow and weather resistant. Outstanding flow, leveling and anti-scratch. Good thick film and clear appearance.
- OEM & ODM Available
- Fast delivery
- Factory Price
- Free Sample
Bonding Learder HS Clear Coat is a two-component high solid acrylic polyurethane clear coat especially formulated for spraying over 1K base coat to give it very high gloss and excellent appearance. High weathering and chemical resistance, outstanding gloss retention.
Product Parameters
| Brand Name | Bonding Leader |
| Product Name | 2K Clear Coat, HS Clear Coat |
| Component style | One-component |
| Model Number | ES810, ES820, ES830 |
| Usage | Suitable for use in all vehicle refinishing process. Provides protection and glossy appearance. |
| Classification | 1K Basecoat |
| Raw Material | Acrylic Polyurethane |
| MF | C3H4O2 |
| CAS No. | 14808-60-7 |
| EINECS No. | 201-177-9 |
| State | Liquid Coating |
| Features | Fast Drying, Long last, UV resistance |
| Substrates | Existing finishes, 1K based coat. |
| Mixing Ratio | Clear coat : Hardener : Thinner = 1 : 0.5 : 0.2-0.3 |
| Pot Life | 4 hours at 20℃ |
| Spraying tools and air pressure | Gravity 1.3-1.5mm 2.0-4.0 Mpa Suction 1.3-1.5mm 1.5-2.0 Mpa |
| Drying time | Spry Gun Ico: 25℃ Dust Free 20 mins Dry to Polish 8 hours IR Clock Ico: 60℃ Dust Free 10 mins Dry to Polish 2 hours Short Wave: Dust Free 5 mins Dry to Polish 1 hours |
| Construction | 2-3 coats (Flash off time 5-10 mins between coats, 20℃) Coats & Thickness: 2-3 coats, total 40-60 um; Flash-Off Time: At 20-25℃, 5 mins between spray coats; |
| Color | Transparent |
| Shelf Life | 24 months in the original package, tightly closed at a temperature of 25 ℃ and away from direct sunlight and heat. |
| Packaging | 1L×12 cans, 4L×6 cans, 5Lx4 cans |
| MOQ | 100L |
Note:
- If moisture or moisture remains on the surface of the substrate, it may cause oil and poor adhesion.
- For products that have thickened beyond the storage period, contact the dealer or technical sales department before use.
- Some motorists use abrasive polishing technology. The operation involves removing the varnish layer using an electrical polisher with a nozzle. In this way, the factory appearance of the paint and varnish coating is renewed and scratches as well as cobwebs are excluded. It is impossible to perform these works on the coating without varnish – a tool can easily make a “bald patch”.
HS Clear Coat Advantages
- High solid content；
- Fast dry acrylic clear coat;
- Excellent yellow and weather resistant.
- Qutstanding flow, leveling and anti-scratch.
- Good thick film and clear appearance.
Preparation of substrates
The surface must be clean and free from oil, grease, dirt and any other foreign contaminants.
New Surface: Must be sanded and cleaned by suitable Degreaser.
Old or Original Surfaces: well sanded and cleaned by Bonding Leader Cleanser.
Product List
| Item No. | Product Name | Mixing ratioBase Paint : Hardener:Thinner | Volume of package can |
| ES950 | HS Clear Coat (UV resistant) | 1 : 0.5:(0.2-0.3) | 1L,4L,20L |
| ES980 | HS extra Clear Coat (UV resistant) Clear Coat | 1 : 0.5:(0.2-0.3) | 1L,4L,20L |
| ES9600 | Clear Coat | 1 : 0.5:(0.2-0.3) | 1L,4L,20L |
| ES999-1 | HS EXTRA UV resistant Clear Coat | 1 : 0.5:(0.2-0.3) | 1L,4L,20L |
| ES999 | E-HS EXTRA UV resistant Clear Coat | 1 : 0.5:(0.2-0.3) | 1L,4L,20L |
| Optional hardener for the clear coat | |||
| EC31 | Fast Drying Hardener to ES950/ES980 | 1 : 0.5:(0.2-0.3) | 1L,4L,20L |
| EC32 | Standard Drying Hardener toES950/ES980 | 1 : 0.5:(0.2-0.3) | 1L,4L,20L |
| EC33 | Slow Drying Hardener to ES950/ES980 | 1 : 0.5:(0.2-0.3) | 1L,4L,20L |
| EC60 | 4:1 Hardener to ES850 | 1 : 0.5:(0.2-0.3) | 1L,4L,20L |
| EC908 | Fast Drying Hardener to ES999 | 1 : 0.5:(0.2-0.3) | 1L,4L,20L |
| EC907 | Standard Drying Hardener to ES999 | 1 : 0.5:(0.2-0.3) | 1L,4L,20L |
| EC906 | Slow Drying Hardener to ES999 | 1 : 0.5:(0.2-0.3) | 1L,4L,20L |
| EC909 | Fast dry hardener(EC909) | 1 : 0.5:(0.2-0.3) | 1L,4L,20L |
| EC300 | General hardener | 1 : 0.5:(0.2-0.3) | 1L,4L,20L |
| EC333 | HS Hardener(to ES7000/8000 Clear Coat) | 1 : 0.5:(0.2-0.3) | 1L,4L,20L |
| Optional Thinner for the clear coat | |||
| EX10 | High Quality Fast Thinner | 4:1:(1-1.2) | 1L,4L,20L |
| EX20 | High Quality Stdandard Thinner | 4:1:(1-1.2) | 1L,4L,20L |
| EX30 | High Quality Slow Thinner | 4:1:(1-1.2) | 1L,4L,20L |
| EX50 | High Quality Extra Slow Thinner | 4:1:(1-1.2) | 1L,4L,20L |
| D5 | Extra Slow Thinner | 4:1:(1-1.2) | 1L,4L,20L |
| D3 | Fast Thinner | 4:1:(1-1.2) | 1L,4L,20L |
| D2 | Standard Thinner | 4:1:(1-1.2) | 1L,4L,20L |
| D1 | Slow Thinner | 4:1:(1-1.2) | 1L,4L,20L |
| Additive details: | |||
| Item No. | Description | Feature | Function |
| 123 | Degreaser | Volatile transparent liquid | ①It is used to clean up the surface of metal. ②Dust removal, oil removal and anti-static resistance |
| 124 | Raccord Thinner | Transparent colorless liquid | Dissolve the interface position of the old and new paint, so that the old and new paint films are integrated, and the repair effect is more perfect. |
| 103 | Drying Additive | Volatile transparent liquid with light Yellow | If the ambient humidity is high, add 1% (based on weight) to make the main paint reach the normal drying time. |
| 120 | Retarder | Transparent colorless liquid | ①The addition amount is generally 10% of the total amount of paint. ②It can delay the drying speed of the paint surface. It is a slow drying diluent |
| PS: The additives above do not have to be uesd with the paint ,it should according to climate situation of the using region. | |||
Storage
Keep in a tightly covered container and in a dry and ventilated environment,avoiding exposure in sun directly.Temperature above 10℃ is recommended, between 15 and 30℃ optimal.
Product packaging
| Tin style | cans/carton | size of the carton（mm） |
| 1L Square Small Mouth | 12 | 358*250*200 |
| 1L Round Big Mouth （12Tins) | 12 | 440*340*140 |
| 1L Round Big Mouth (6Tins) | 6 | 340*228*140 |
| 1LFlat Big Mouth （12Tins） | 12 | 553*413*114 |
| 1LFlat Big Mouth （8Tins) | 8 | 283*283*222 |
| 4LRound Big Mouth | 4 | 344*344*208 |
| 4LSquare Small Mouth | 6 | 345*325*275 |
| 20LBig/Small Mouth Barrel | 1 | 300*300*370 |
