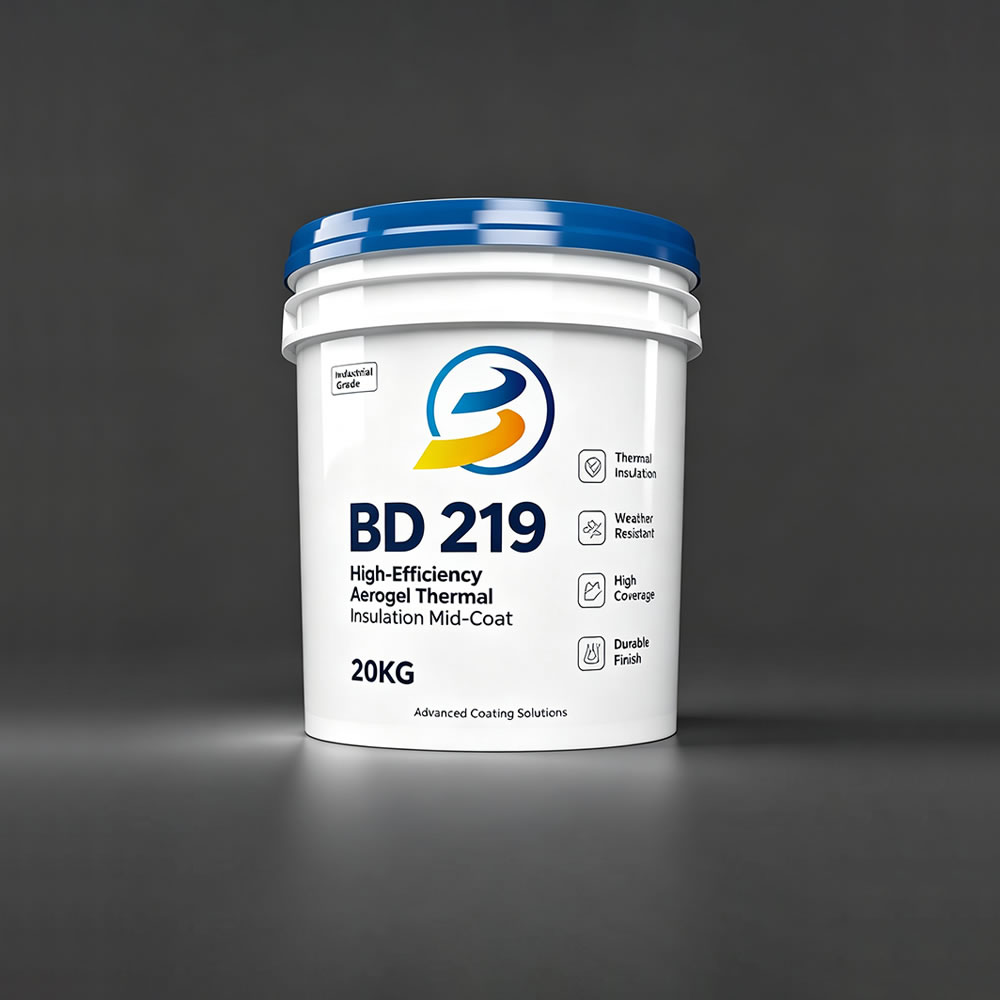

BD 219 High-Efficiency Aerogel Thermal Insulation Mid-Coat
Engineered as a high-performance thermal barrier mid-coat to block heat conduction and boost energy efficiency in multi-layer facade and industrial coating systems.
- OEM & ODM Available
- Fast delivery
- Factory Price
- Free Sample
BD 219 High-Efficiency Aerogel Thermal Insulation Mid-Coat is a functional intermediate coating engineered to serve as the high-performance thermal barrier core in multi-layer architectural and industrial coating systems. Formulated with an advanced multi-nano composite matrix—incorporating high-purity aerogel, nano-hollow glass microspheres, hollow ceramic powder, and hollow fibers—it achieves an exceptionally low thermal conductivity of 0.004 W/m·K or lower along with high thermal resistance.
By effectively blocking heat conduction and thermal loss, BD 219 delivers superior insulation performance even in thin-layer applications. It helps project developers and engineers satisfy stringent building energy conservation standards while providing a high-adhesion, high-build foundation for topcoat finishes.
Ultra-Low Thermal Conductivity
Features an elite thermal conductivity rating of 0.004 W/m·K or lower, providing unmatched heat-conduction blocking and superior insulation compared to traditional materials.
High Structural Stability & Adhesion
Engineered for excellent high-build application, bridging substrate micro-cracks while establishing a tenaciously bonded foundation for topcoats.
Advanced Multi-Nano Composite Fillers
Synergy of aerogel, nano-hollow glass beads, hollow ceramic powders, and fibers creates a dense, multi-cavity heat barrier network.
Core Insulating Layer for Systems
Functions as the structural mid-coat in thermal insulation coating systems, maximizing total system heat resistance and energy efficiency.
Product Parameters
| Property / Parameter | Technical Value / Specification |
| Product Type | Aerogel Thermal Insulation Intermediate Coating |
| Thermal Conductivity | 0.0034 W/(m·K) |
| Thermal Resistance (1 mm thick) | 0.294 (m²·K)/W |
| Combustion Performance | Class A2 |
| Coating Temperature Resistance (5 cycles) | No abnormalities |
| Water Permeability | 1.7 ml |
| Water Resistance (96h) | No abnormality |
| Bonding Strength (Standard Condition) | 0.75 MPa |
| Bonding Strength (After Water Immersion) | 0.59 MPa |
| Formulation Matrix | Multi-Nano Composite (Aerogel, Glass Microspheres, Ceramic Powder & Hollow Fibers) |
| Standard Packaging | 20kg / Pail |
| Flexible Packaging Options | 10kg Pail / 25kg Industrial Pail / Custom OEM Packaging |
Construction Process
- Construct after the primer is fully dried with a dust-free and oil-free substrate;
- Stir evenly and apply two thin coats for full coverage;
- Interval more than 4 hours;
- Polish flat after full drying before top coat construction.
Storage & Shelf Life
- Store sealed in a cool and dry place;
- Avoid high temperatures and freezing environments;
- Keep away from acid and alkali chemicals;
- Unopened shelf life: 12 months.
